$0.310

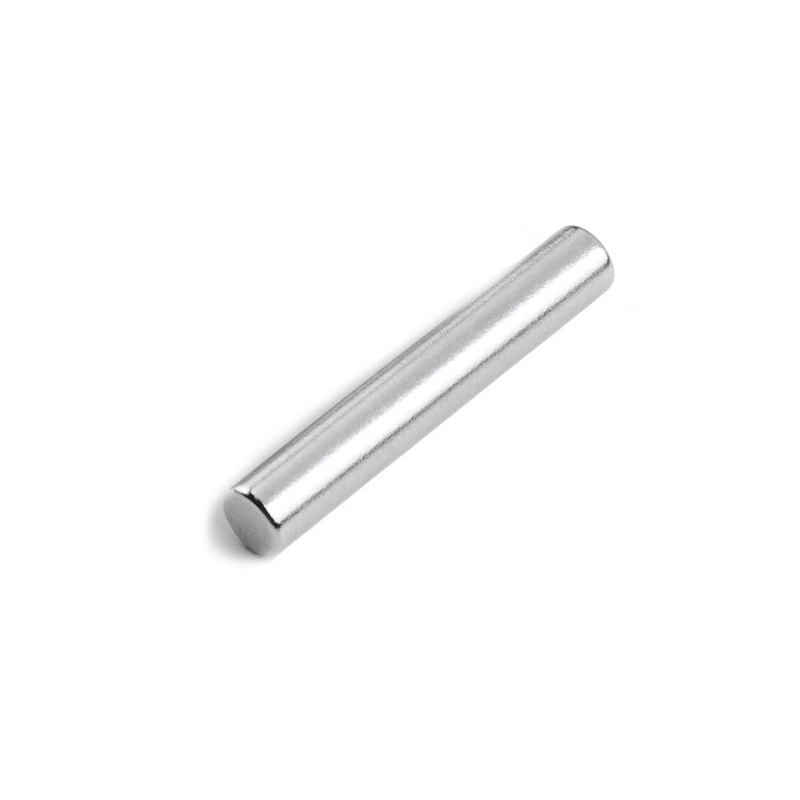

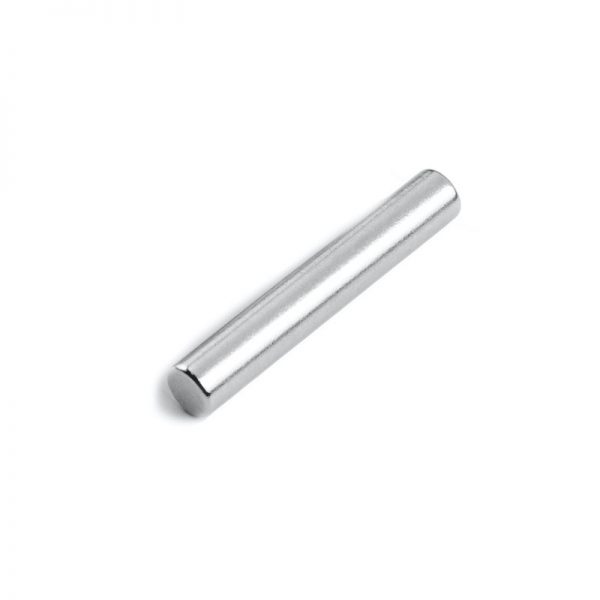

Rod NdFeB magnet D 4 mm,height 25 mm
N42,nickel-plated,axial
| Material | NdFeB |
| Shape | Rod |
| Diameter | 4 mm |
| Height | 25 mm |
| Tolerance | +/- 0.1 mm |
| Direction of magnetisation | axial (parallel to height) |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | N42 |
| Strength | approx. 670 g (approx. 6.57 N) |
| Max. working temperature | 80°C |
| Weight | 2.4 g |
Rod magnets have a classic cylindrical design that many of us remember from school. Their diameter is generally smaller than their height, however, we also depict magnets that have the same diameter and height.
| 500 pcs. | 0.12 USA.* | |
| from | 1000 pcs. | 0.08 USA.* |
| from | 5000 pcs. | 0.06 USA.* |
| from | 10000 pcs. | 0.04 USA.* |
| from | 1100 pcs. | according to quot |
| 50 pcs. | 0.18 USA.* | |
| from | 100 pcs. | 0.16 USA.* |
| from | 500 pcs. | 0.15 USA.* |
| from | 1000 pcs. | 0.13 USA.* |
| from | 1100 pcs. | according to quot |
