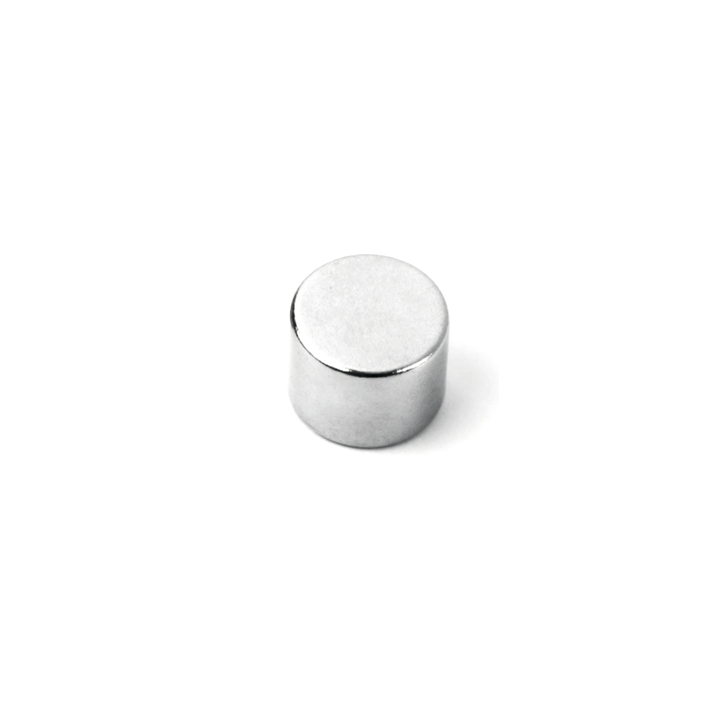

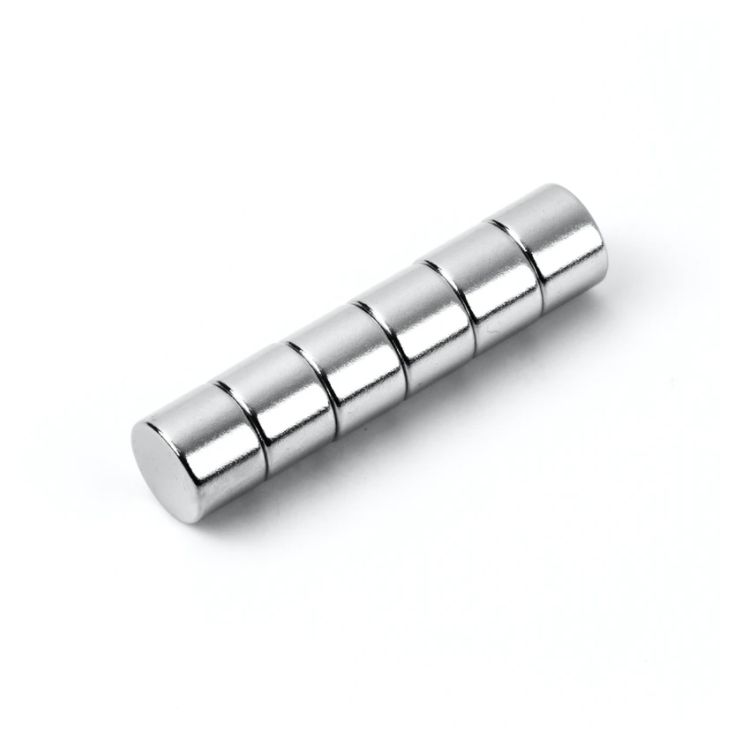

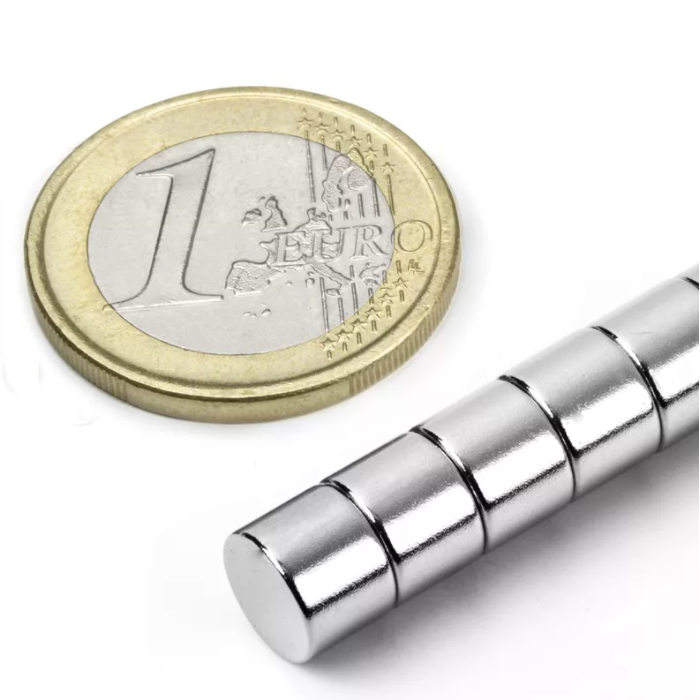

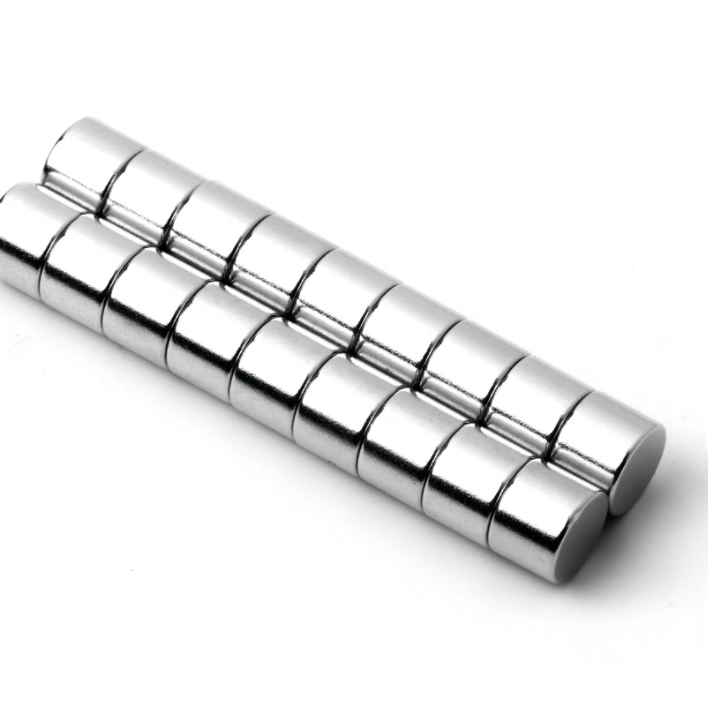

Disc Neodymium Magnet N52 D8x6mm

Disc Neodymium Magnet N52 D8x6mm

Disc NdFeB magnet Diameter 8 mm, height 6 mm

N52,nickel-plated, axial

Price and rebate

500 pcs. 0.19 USA.*
from 1000 pcs. 0.18 USA.*
from 5000 pcs. 0.16 USA.*
from 10000 pcs. 0.14 USA.*
from 11000 pcs. according to quot



+ -

Description

Disc Neodymium Magnet N52 D8x6mm-U-Polemag
Product Name Disc Neodymium Magnet
Material NdFeB
Shape Disc
Size D8 x 6 mm
Tolerance +/- 0.1 mm
Direction of magnetization Axis 6 mm
Coating Nickel-plated (Ni-Cu-Ni)
Magnetization N52
Strength approx. 2.6 kg (approx. 25.5 N)
Max. working temperature 65°C
Weight 2.3 g

Neodymium magnet

N52 Neodymium magnet

D8x6 mm N52 Disc Neodymium magnets, like our other super magnets, are made of a special NdFeB alloy, which allows neodymium block magnets to achieve an extreme adhesive force of up to 200 kg. In our shop, you can find blocks with heights ranging from 1 to 25 mm, which makes them very versatile in their use. The blocks have a protective nickel coating, some even have gold plating, making them look very appealing.
