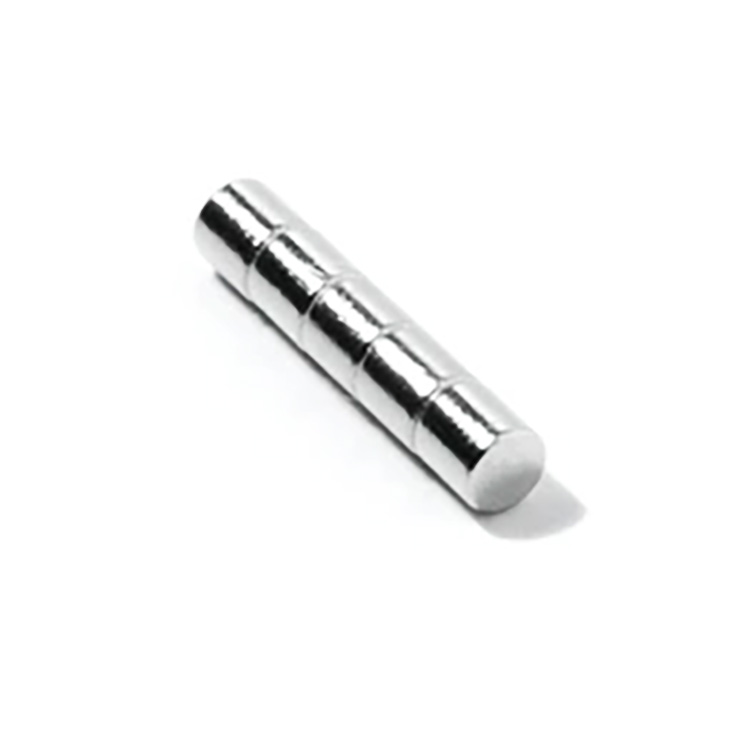

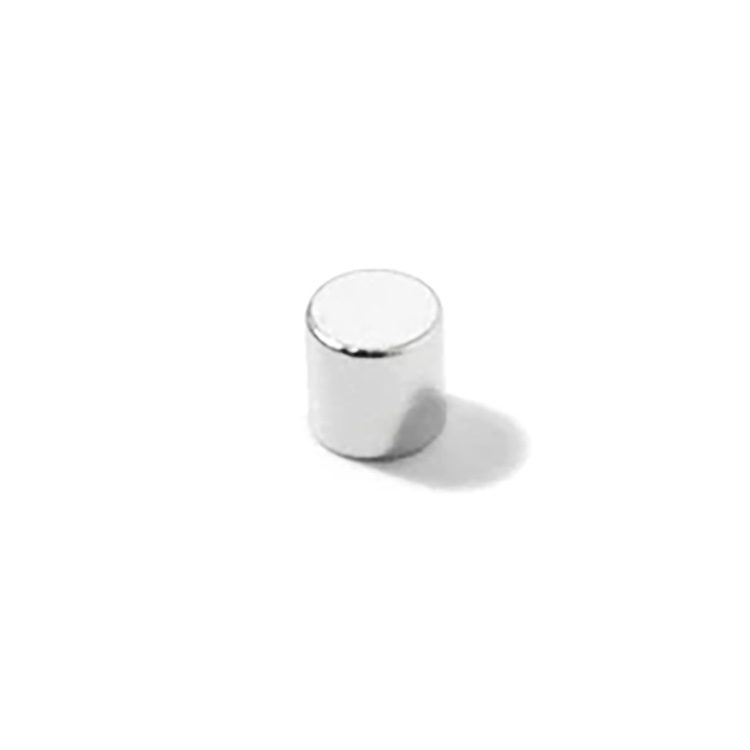

Disc Neodymium magnet N48 D2x2mm

$0.040

  • Ask for a rebate

    • Disc NdFeB magnet Diameter 2 mm, height 2 mm

    N48,nickel-plated, axial

    Price and rebate

    500 pcs. 0.08 USA.*
    from 1000 pcs. 0.06 USA.*
    from 5000 pcs. 0.05 USA.*
    from 10000 pcs. 0.04 USA.*
    from 11000 pcs. according to quot



    + -
    Category: Tags: ,

    Description

    Disc Neodymium magnet N48 D2x2mm-U-Polemag
    Material NdFeB
    Shape Disc
    Diameter 2 mm
    Height 2 mm
    Tolerance +/- 0.1 mm
    Direction of magnetisation axial (parallel to height)
    Coating Nickel-plated (Ni-Cu-Ni)
    Magnetisation N48
    Strength approx. 150 kg (approx. 1.47 N)
    Max. working temperature 80°C
    Weight 0,048 g

    Neodymium magnet

    N42 Neodymium magnet

    D2x2 mm N48 Disc Neodymium magnets, like our other super magnets, are made of a special NdFeB alloy, which allows neodymium block magnets to achieve an extreme adhesive force of up to 200 kg. In our shop, you can find blocks with heights ranging from 1 to 25 mm, which makes them very versatile in their use. The blocks have a protective nickel coating, some even have gold plating, making them look very appealing.
