Description
Description:

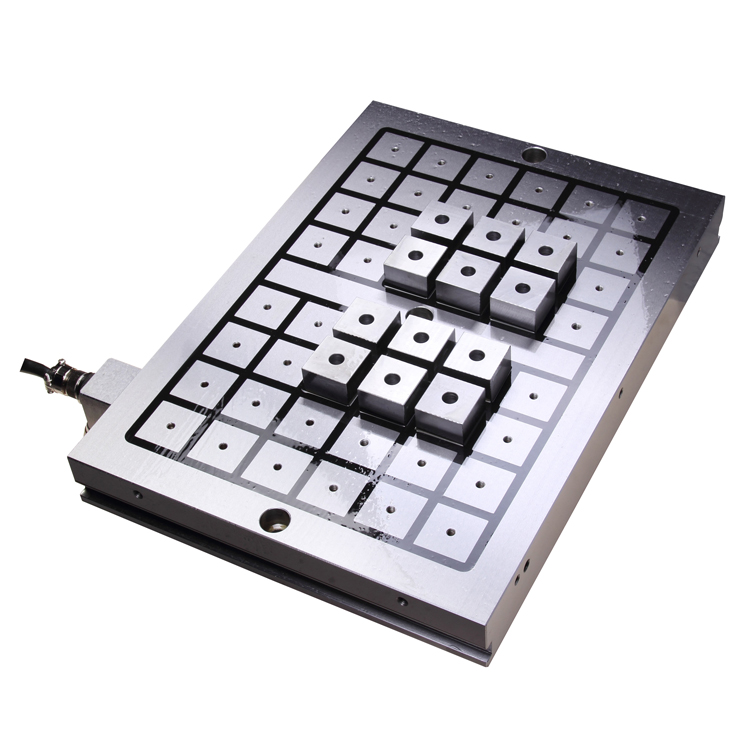

1.Pole dimension:50x50mm,the clamping force with 380kgf for each pole
2.Used for normal drilling,milling,and CNC machining center
3.Best used for the workpieces at least 250x250mm and 10mm thick. Used for samll,medium dimensions with normal operating air gaps
and thinner workpieces.
2.Used for normal drilling,milling,and CNC machining center
3.Best used for the workpieces at least 250x250mm and 10mm thick. Used for samll,medium dimensions with normal operating air gaps
and thinner workpieces.
|
Model
|
Dimension(mm)
|
Poles number
|
Weight(kgs)
|
|||
|
Length
|
Width
|
Highth
|
N.W
|
G.W
|
||
|
EP50-205
|
470
|
258
|
58
|
18
|
55
|
63
|
|
EP50-206
|
595
|
258
|
58
|
24
|
70
|
78
|
|
EP50-208
|
775
|
258
|
58
|
30
|
91
|
101
|
|
EP50-209
|
900
|
258
|
58
|
36
|
106
|
116
|
|
EP50-210
|
1025
|
258
|
58
|
42
|
120
|
132
|
|
EP50-303
|
327
|
315
|
58
|
16
|
47
|
55
|
|
EP50-304
|
436
|
315
|
58
|
24
|
63
|
71
|
|
EP50-305
|
496
|
315
|
58
|
28
|
71
|
79
|
|
EP50-306
|
595
|
315
|
58
|
32
|
85
|
95
|
|
EP50-308
|
775
|
315
|
58
|
40
|
111
|
121
|
|
EP50-309
|
900
|
315
|
58
|
48
|
129
|
141
|
|
EP50-310
|
1025
|
315
|
58
|
56
|
147
|
159
|
|
EP50-403
|
430
|
320
|
58
|
24
|
63
|
72
|
|
EP50-404
|
430
|
430
|
58
|
30
|
84
|
93
|
|
EP50-405
|
490
|
430
|
58
|
36
|
96
|
101
|
|
EP50-406
|
605
|
436
|
58
|
48
|
120
|
130
|
|
EP50-408
|
775
|
436
|
58
|
60
|
154
|
164
|
|
EP50-409
|
900
|
436
|
58
|
72
|
179
|
191
|
|
EP50-410
|
1000
|
400
|
68
|
84
|
214
|
227
|
|
EP50-503
|
500
|
315
|
58
|
28
|
72
|
81
|
|
EP50-505
|
510
|
500
|
58
|
42
|
116
|
123
|
|
EP50-506
|
605
|
500
|
58
|
56
|
138
|
148
|
|
EP50-508
|
770
|
500
|
68
|
70
|
204
|
214
|
|
EP50-509
|
900
|
500
|
68
|
84
|
238
|
250
|
|
EP50-510
|
1010
|
500
|
68
|
98
|
267
|
278
|
|
EP50-603
|
600
|
310
|
58
|
32
|
85
|
103
|
|
EP50-604
|
600
|
436
|
58
|
48
|
120
|
130
|
|
EP50-605
|
600
|
500
|
58
|
56
|
140
|
150
|
|
EP50-606
|
615
|
600
|
58
|
72
|
195
|
207
|
|
EP50-608
|
625
|
770
|
68
|
90
|
255
|
267
|
|
EP50-609
|
890
|
615
|
68
|
108
|
290
|
320
|
|
EP50-610
|
1010
|
615
|
68
|
126
|
329
|
349
|
Technical Characteristics
|
Model
|
50 Series
|
75 Series
|
|
Pole size
|
50x50mm
|
75X75mm
|
|
Magnetic force of each pole
|
380kgs
|
750kgs
|
|
Thickness of each plate
|
53mm※
|
53mm※
|
|
Max.working temperature
(mold contact face)
|
70°C※
|
70°C※
|
|
Depth of magnetic fluex
|
12mm
|
18mm
|
|
Standard voltages
|
220V 380V 50/60Hz
|
220V 380V 50/60Hz
|
|
Electrical input
|
≤60A
|
≤60A
|
※※Higher working temperature can be fixed according to requirements
※※Thickness can be fixed according to requirementst
Configure
|
1
|
Two Magnetic plates:used for fixed mould and moving mould
|
|
2
|

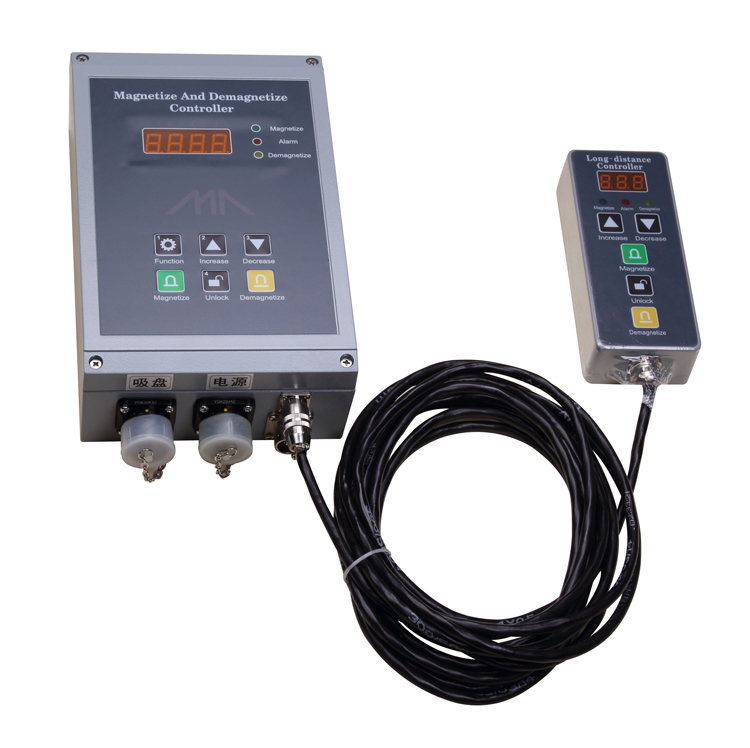

Electrical controlling block:with PLC joint and safe joint,remote controller
|
|
3
|
Power supply voltage:380V,50Hz,2 phase(other customization)
|
|
4
|
Keys with magnetic and demagnetization buttons,indicator lamp and safe keys
|
|
5
|
Proximity sensors are installed on each sucker
|
|
6
|
one set of fixed bolt
|
|
7
|
One piece of power cables(without joint)with 3 meter,
2pcs of 3-meter cables from controller to sucker |
|
8
|
user is guide
|
How to work
Demagnetization
During the Demag phase, the magnetic flux is short circuited inside the magnetic module frame, perfectly releasing the mold for its changeover
Magnetization
During the Mag phase, the magnetic flux is short-circuited outside the magnetic surface clamping the mold with a very limited magnetic depth, so as not to affect internal part of the engaged mold
Application
