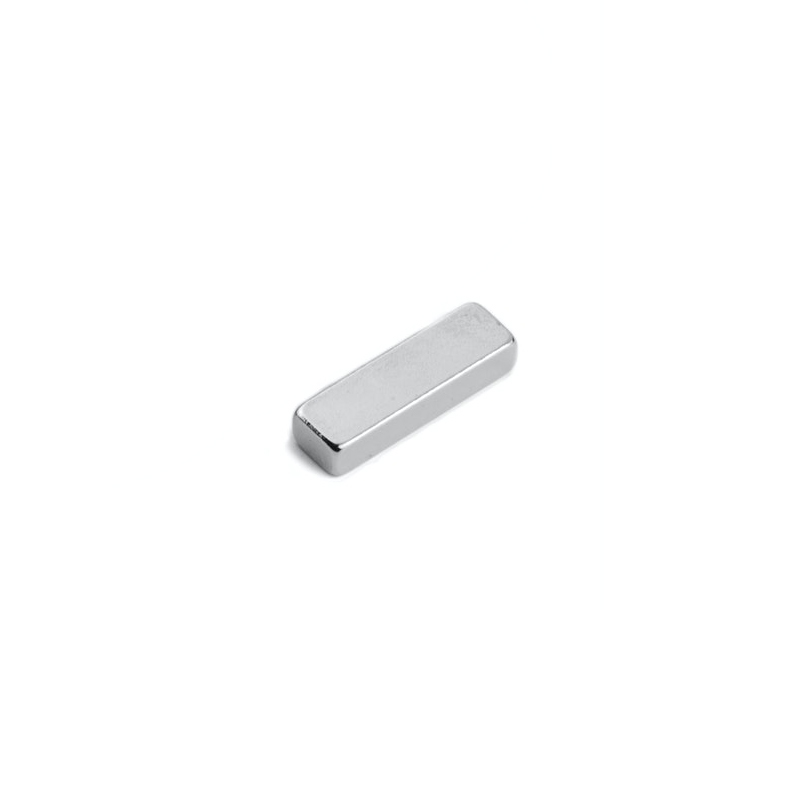

10 x 3 x 2 mm 44H Block Neodymium magnet

$1.960

  • Ask for a rebate

    • Neodymium, N45, nickel-plated

    Price and rebate

    500 pcs. 0.20 USA.*
    from 1000 pcs. 0.15 USA.*
    from 5000 pcs. 0.14 USA.*
    from 10000 pcs. 0.12 USA.*
    from 11000 pcs. according to quot



    + -
    Category: Tags: ,

    Description

    10 x 3 x 2 mm 44H Block Neodymium magnet-U-Polemag
    Material NdFeB
    Shape Block
    Size 10 x 3 x 2 mm
    Tolerance +/- 0.1 mm
    Direction of magnetization Axis 2 mm
    Coating Nickel-plated (Ni-Cu-Ni)
    Magnetization 44H
    Strength approx. 700 g (approx. 6.86 N)
    Max. working temperature 80°C (possibly lower)
    Weight 0.46 g

    Neodymium magnet

    44H Block Neodymium magnet

    10 x 3 x 2 mm 44H Block Neodymium magnet Extra strong, heat-resistant (N44H) block magnets (10x3x2 mm). This magnet is often used by builders of a model airplane who construct their motors. The stronger the magnet, the smaller and lighter the motor can be designed. Heat-resistant up to 120 degrees.
